產品介紹/傳料箱

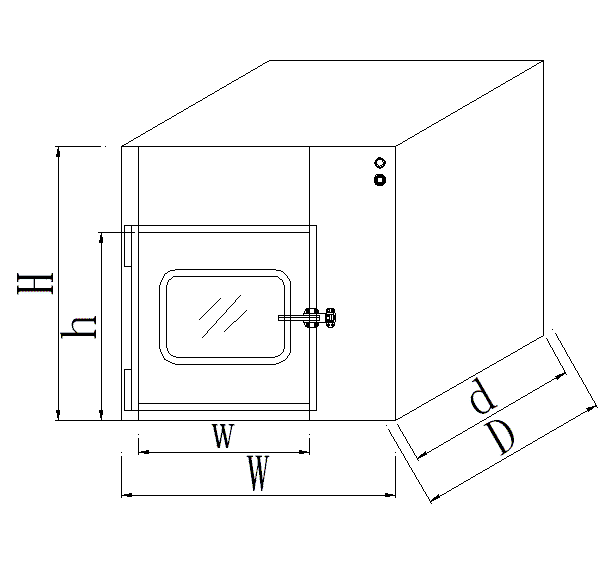

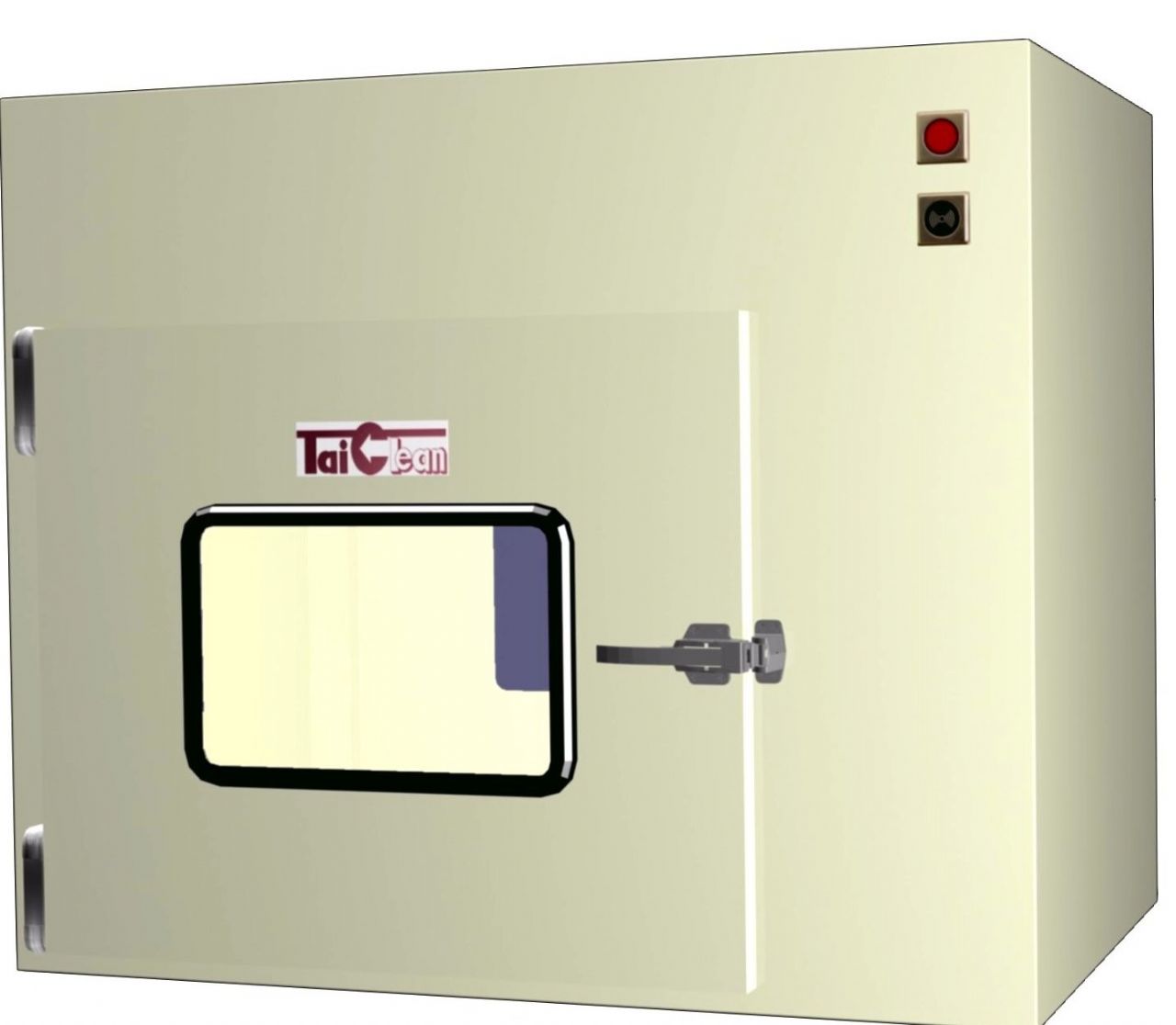

PB傳料箱
Pass Box-For Lighten Duty
潔淨室為了避免人員不必要的進出,影響環境品質及浪費工時,於室內外隔牆裝設傳料箱專提供小物料及文件傳送用
Pass Box equipment for easy transfer of materials to and from Clean Room and to eliminates unnecessary personnel entry and resultant contamination
標準裝備(standard Accessories)：
1. 機械式連鎖裝置 Mechanical Interlock
2. 蜂鳴指示燈 Buzzer with red light
選用(option)：
1. 對講機Call Phone
2. 殺菌燈UV Lamp

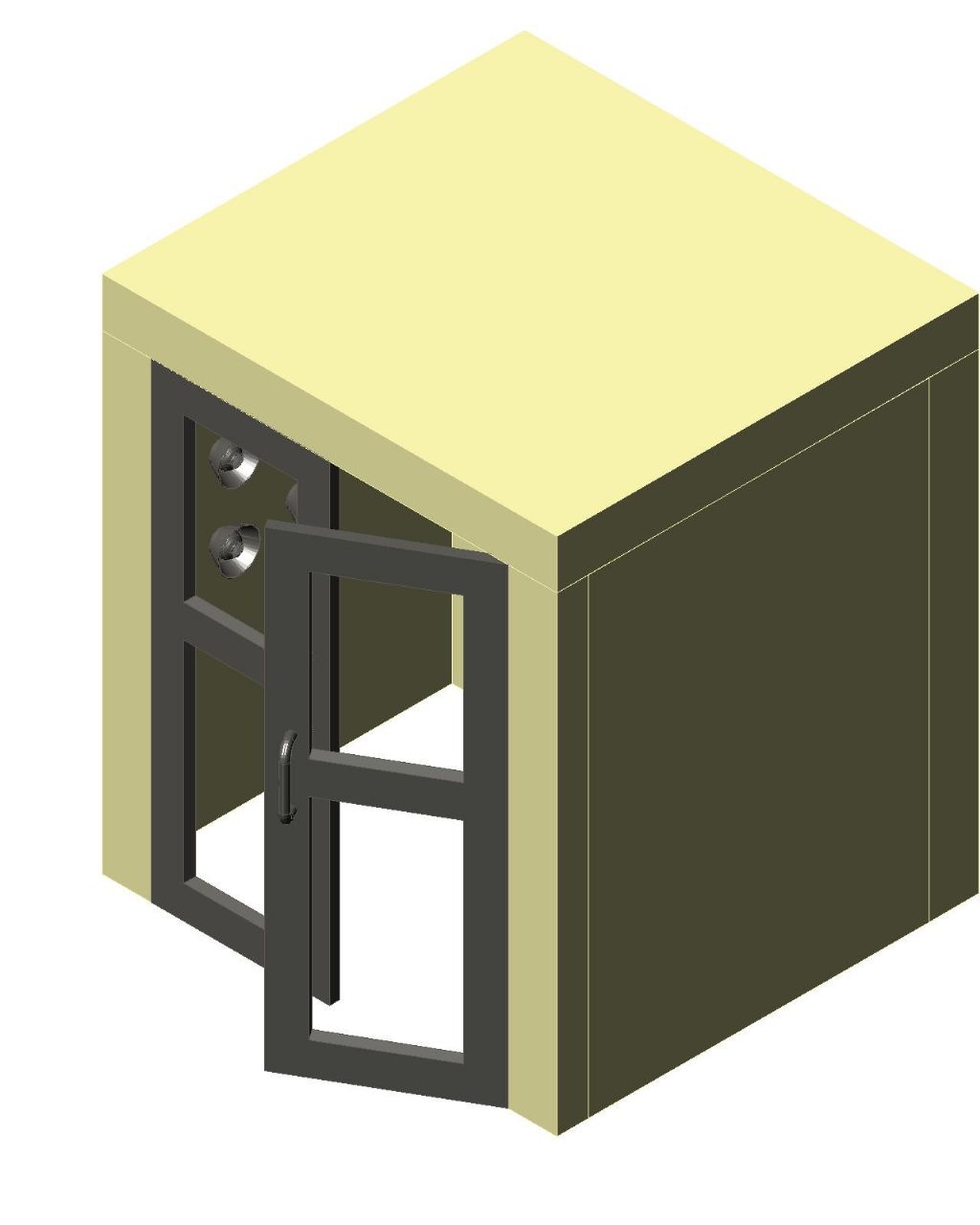

PR 落地傳料室Pass Room
For Have Duty(cart trans)
依照客戶需求尺寸訂作ALL CUSTOMIZED DESIGN
工程系列 PB-2 /SPBW /SPBG /CPB
浴塵傳料系列
Shower with Interlock and exhaust system
For Cleanliness Class1~1000 Cleanroom use
Shower：HEPA FILTER: DOP 99.99% 0.3 micron
Shower：FAN : 3/4HP 3phase 220V/380V 50/60HZ
Shower：Nozzle’s Air Speed：30m/sec.
Exhaust System : Quickly force the particles through an exhaust vent to the dirty side out of the pass box
可將高速浴塵後殘留之微塵，迅速由洩壓門強制排至箱外
SPBW窗型浴塵傳料箱 - 浴塵式
Shower Pass Box—Window Type

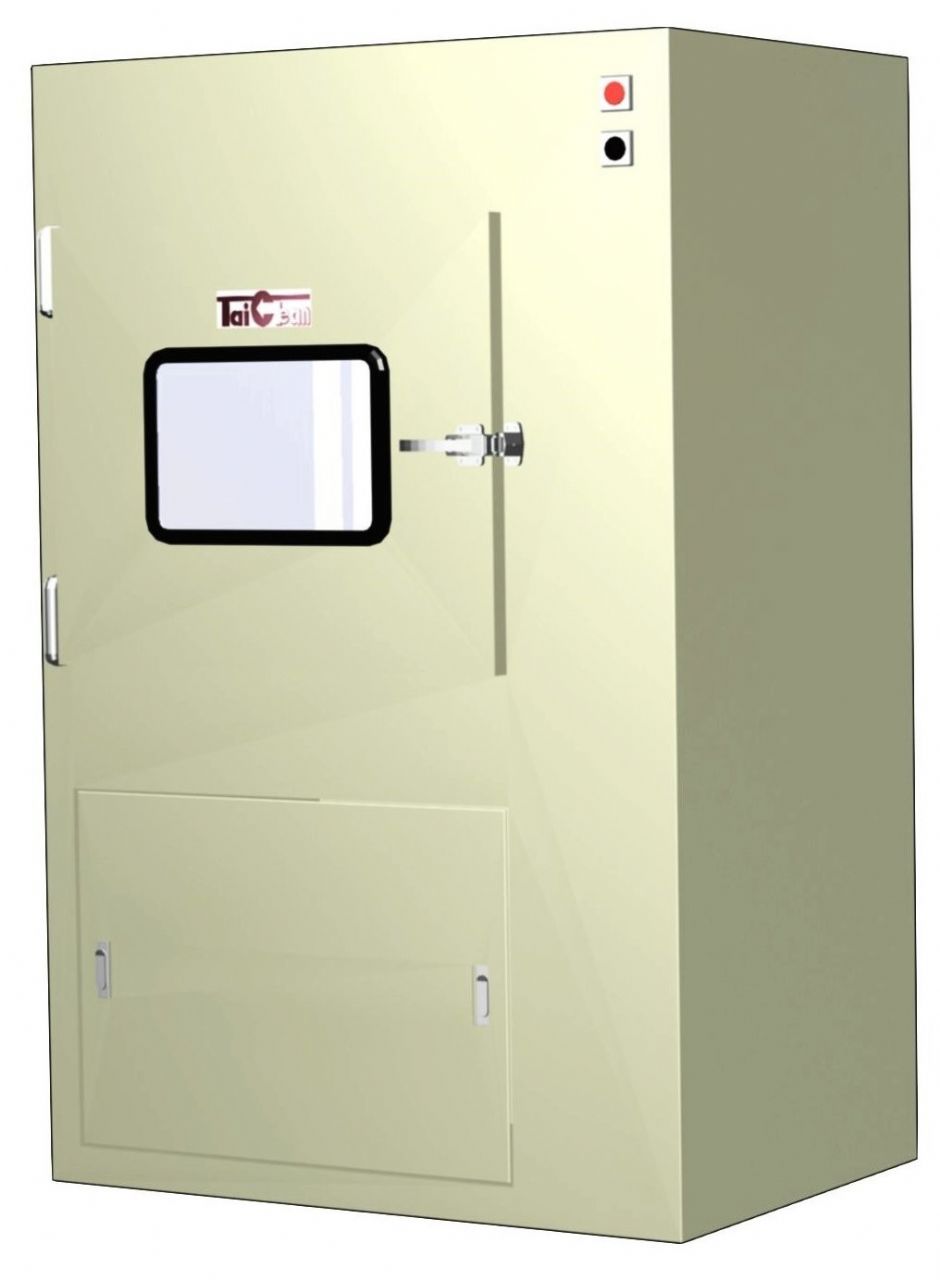

SPBG 落地浴塵傳料箱—浴塵式
Shower Pass Box—Grounding Type
CPB 潔淨傳料箱 Clean Pass Box –層流式
HEPA FILTER：DOP 99.99% 0.3 micron
ULPA：99.999%~99.9999% 0.1micron
Low speed FAN : 1phase 220V/380V 50/60HZ
Air Speed：0.4m~0.7m/sec.
Nozzle：No

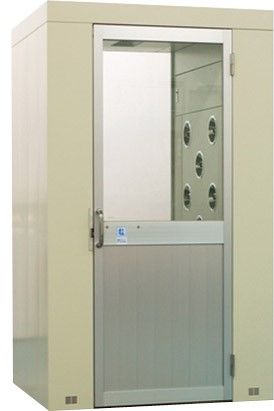

SPR落地浴塵傳料室Shower Pass Room浴塵式
For Have Duty(cart transfor)
Full range of size meets nearly and application
HEPA FILTER：DOP 99.99% 0.3 micron
FAN : 3/4HP 3phase 220V/380V 50/60HZ
Air Speed : 25m~30m/sec.
Nozzle：SUS 304
Doors：Materials same as main body or others for larger size
依照客戶需求尺寸訂作ALL CUSTOMIZE DESIGN
